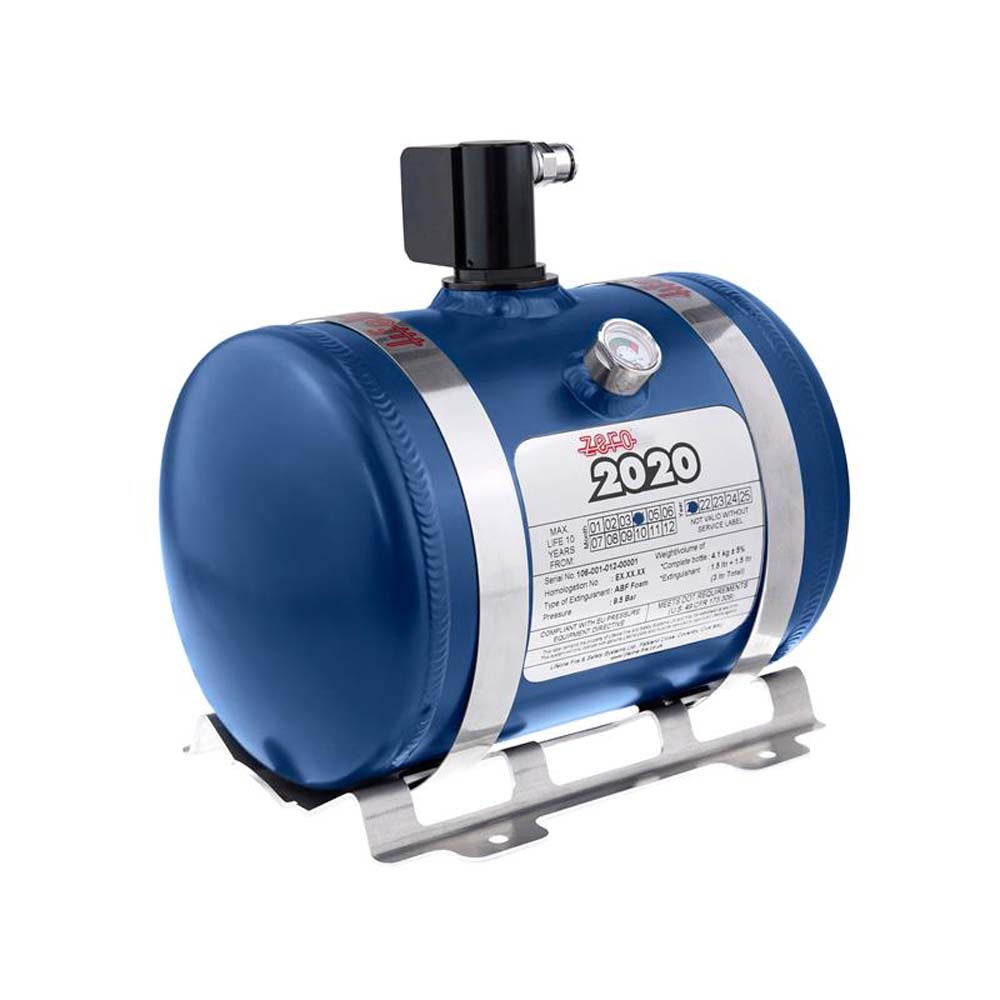

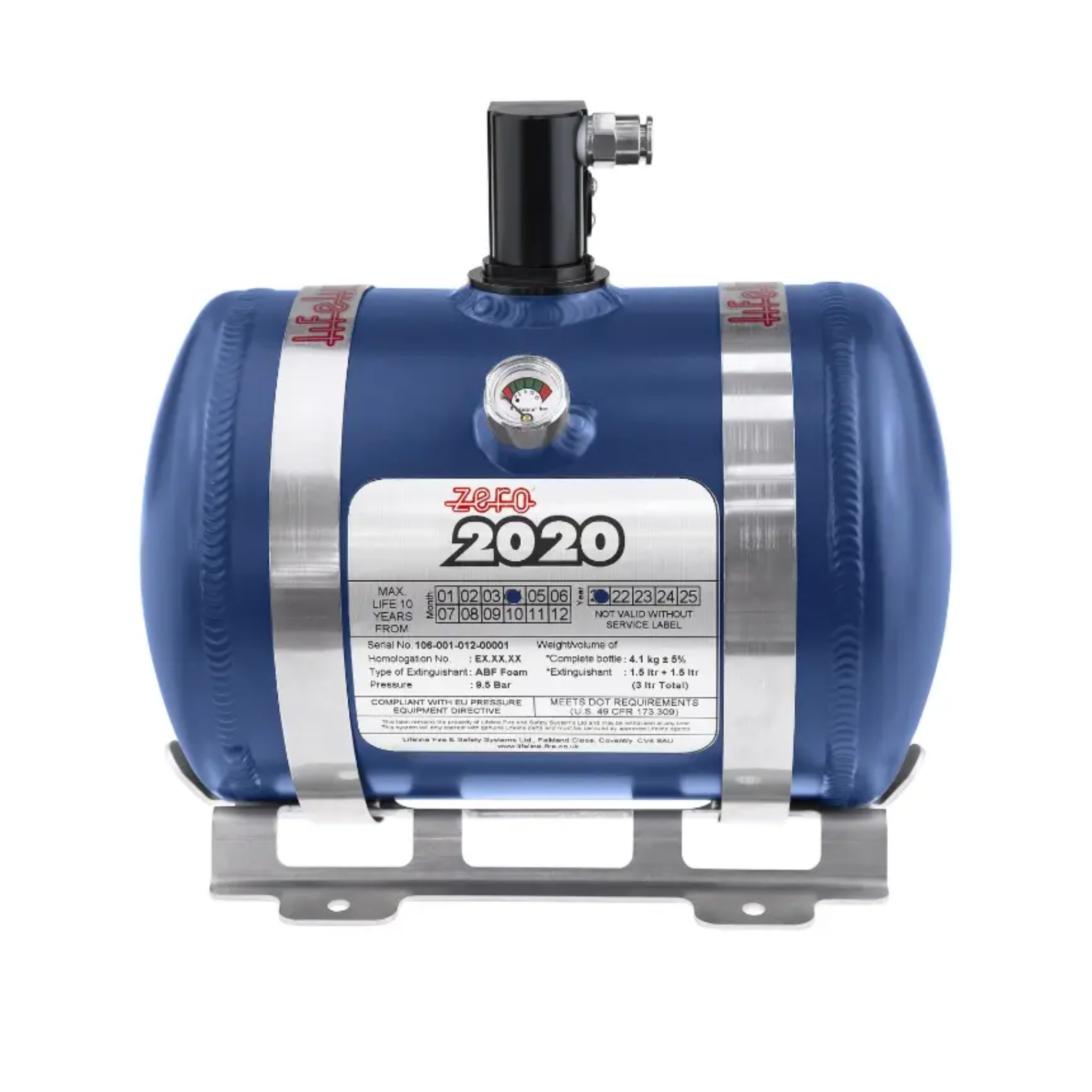

Lifeline Zero 2020 Fire Marshal FIA Fire System - 3 Liter Electric
SKU: LLZE106012
Smaller, lighter and more powerful then previous models, Lifeline's Zero 2020 ABF Fire System utilizes a water-based ABF foam that absorbs heat faster for greater knock down ability. Featuring a 5 misting nozzle design for a less complex installation, the Zero 2020 strategically covers the engine bay with 3 nozzles and 2 for the cockpit. Passing FIA's latest Technical List 16 standard, the smaller 3 Liter bottle (generally accepted as a 5 lb system equivalent), the system includes 8mm delivery tubes for faster heat absorption and fire knockdown capability. The Electric Fire Marshall system is activated by pressing one of 2 included momentary push buttons. A military grade actuator detonates the extinguisher, and is powered by an independent power supply, complete with battery strength and circuit continuity checks.
Rating: | FIA-2018 |
Part Number: | LLZE106002 |
Manufacturer: | 106-001-002 |

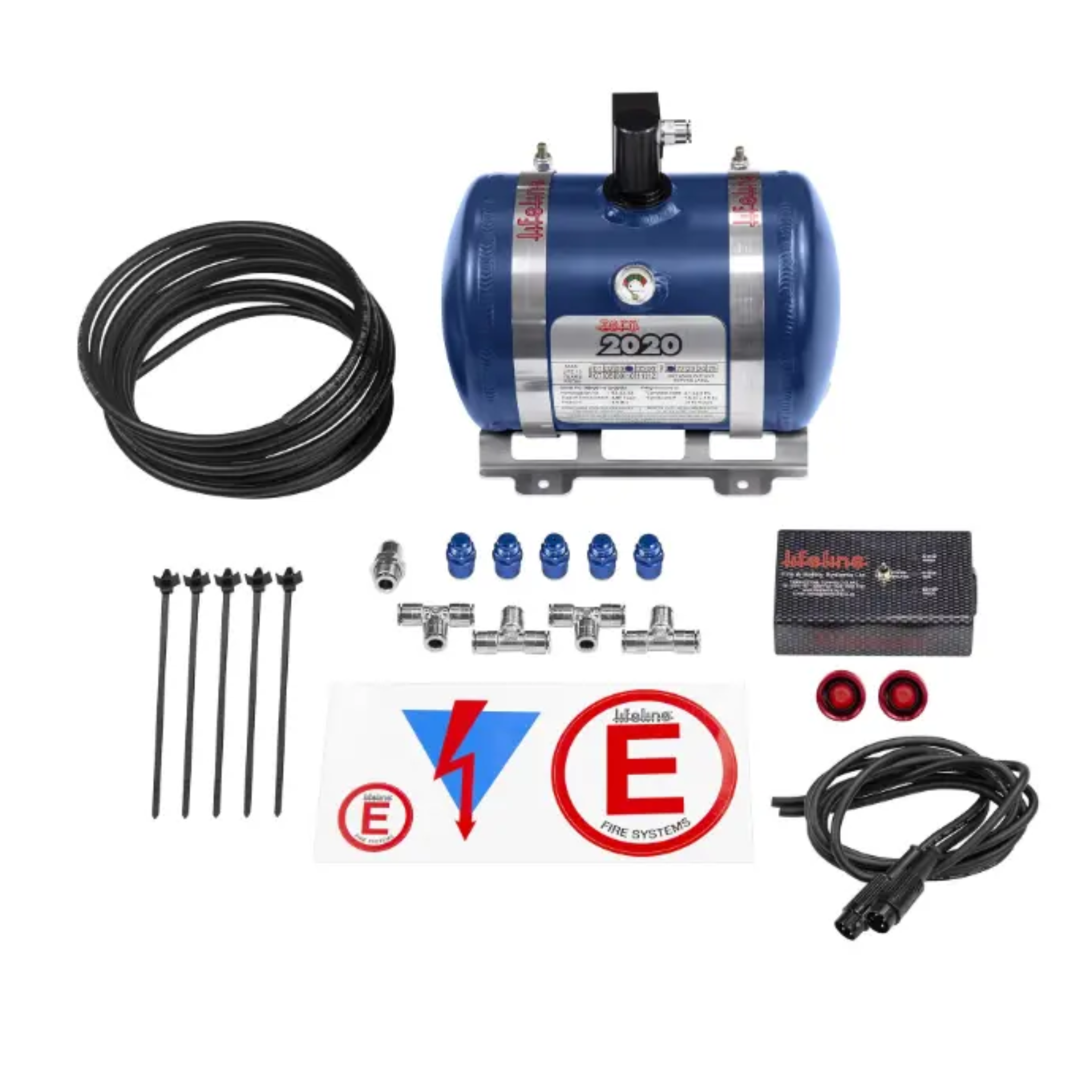

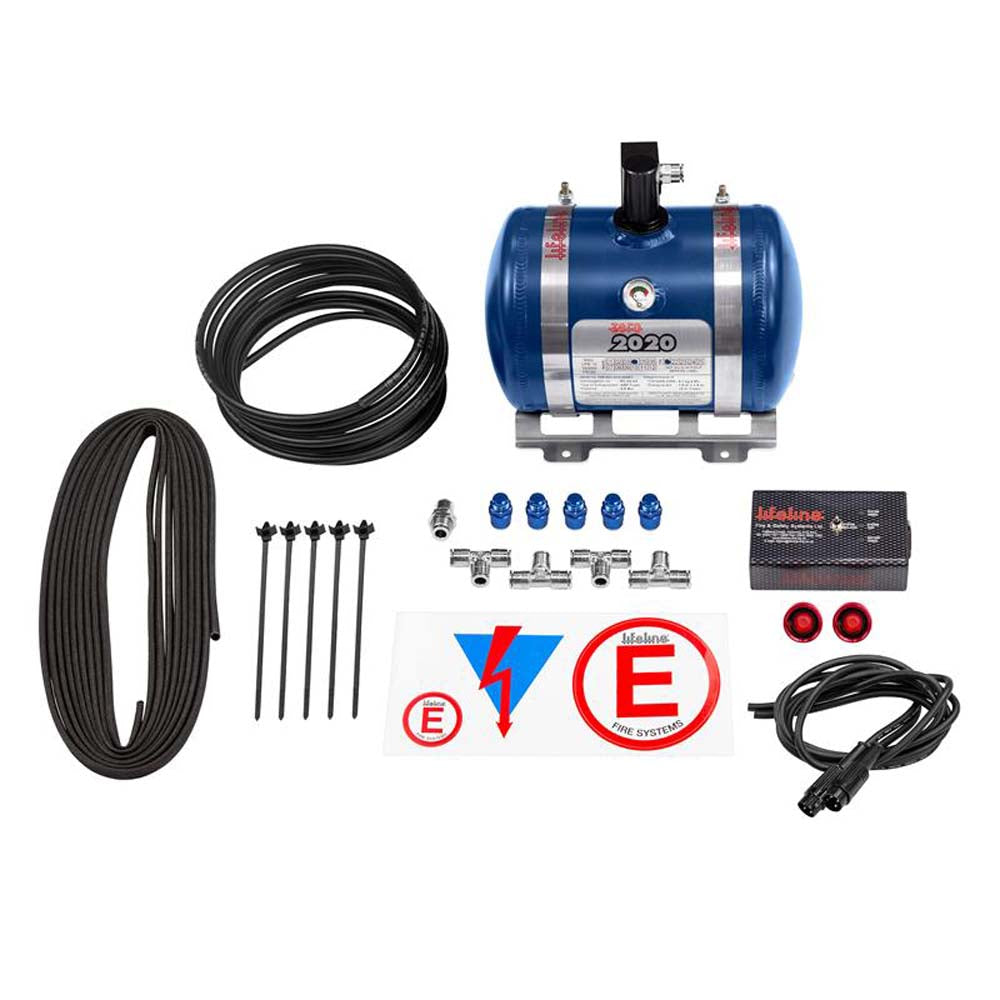

Each Kit Includes:
- 4-Liter AFFF Bottle (filled & charged)
- (1) Power Pack (Independent Power Supply)
- (2) Plug and Lead Assembly
- (2) Momentary Push Button
- (8) Misting Nozzles (4-Engine, 4-Cockpit)
- (6) 8mm Equal-T Connectors
- 8m 8mm Decabon Tubing
- (1) 8mm Bulkhead Fitting
- (1) Mounting Bracket & Straps
- (1) Decal Pack
- (5) Tube Clips

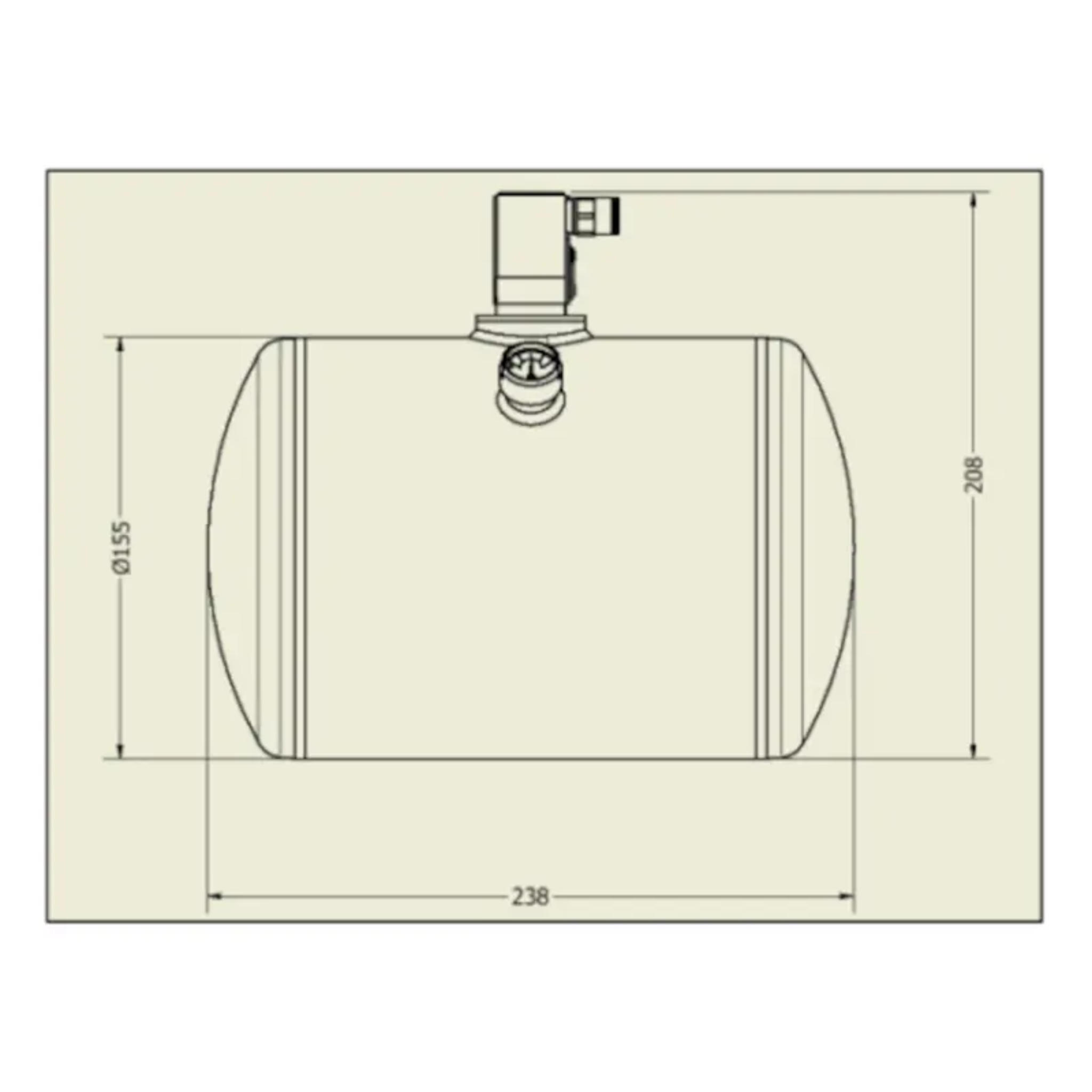

Fire Bottle Dimensions (inches):
- Diameter: 6.1
- Length: 17.5
- Weight: 15 lbs.
